Industrial crane HB-GS with pivoting arm
Industrial cantilever crane with pivoting arm description

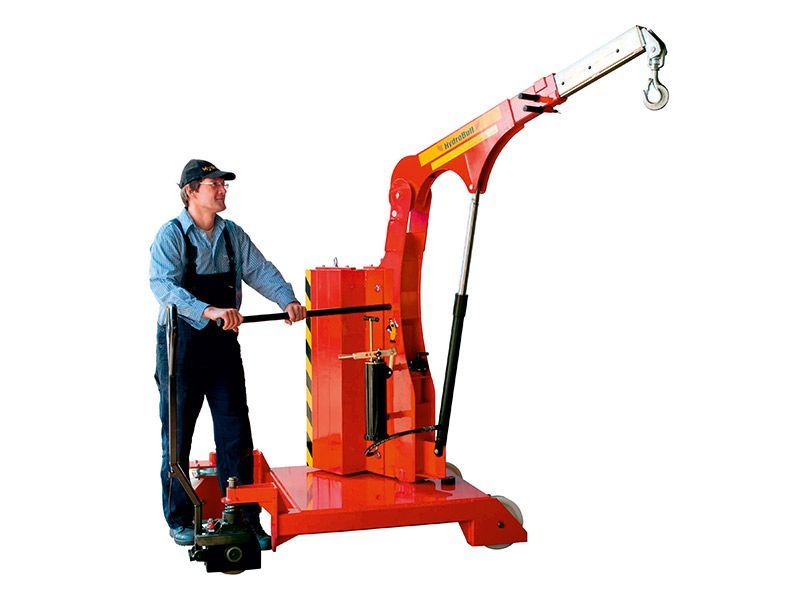

The HB-GS cantilever crane is a high-end model with pivoting arm from 100 to 360° rotation (depending on models). Due to the pivoting arm, you can pick up your machine as close as possible and carry out your handling operations with the hook perpendicular to the chassis.
As HB-GK FaPo model, these cranes are designed to obtain a very high level of progressiveness in moving or lifting during your machine tools maintenance operations or loading/lowering, surface blocks.
The chassis extend length never exceed 1090 mm and facilitates passing through narrow aisles or among your production machines.
Industrial cranes with starting assist
All HB-GS cranes are standard equipped with a starting assist device. This FaPo type system, also known as a mechanical positioner, allows you to move very smoothly, both laden and unladen, and, above all, to draw up the crane with millimetre accuracy. Furthermore, the progressiveness of the jack is perfectly controlled by the operator, who can thus respect a positioning to the millimetre.
Cantilever industrial cranes with adjustable jib
13 jib adjustment positions:
- HB-GS 500 > 270° rotation / 90 Kg lift at 2400 mm jib length in front of wheels / max height 3750 mm
- HB-GS 800 > 270° rotation / 90 Kg lift at 2400 mm jib length in front of wheels / max height 3750 mm
- HB-GS 1000 > 360° rotation / 295 Kg lift at 3005 mm jib length in front of wheels / max height 5000 mm

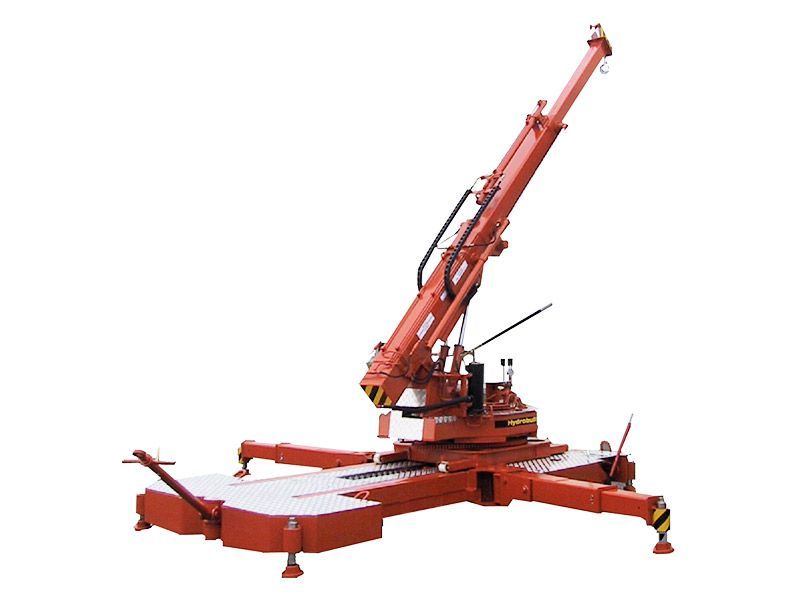

Industrial cranes in pictures
HB-GS Industrial cranes options
- Extra counterweights
- Electric positionning device
- Electric lifting device
- Electric rotating device
